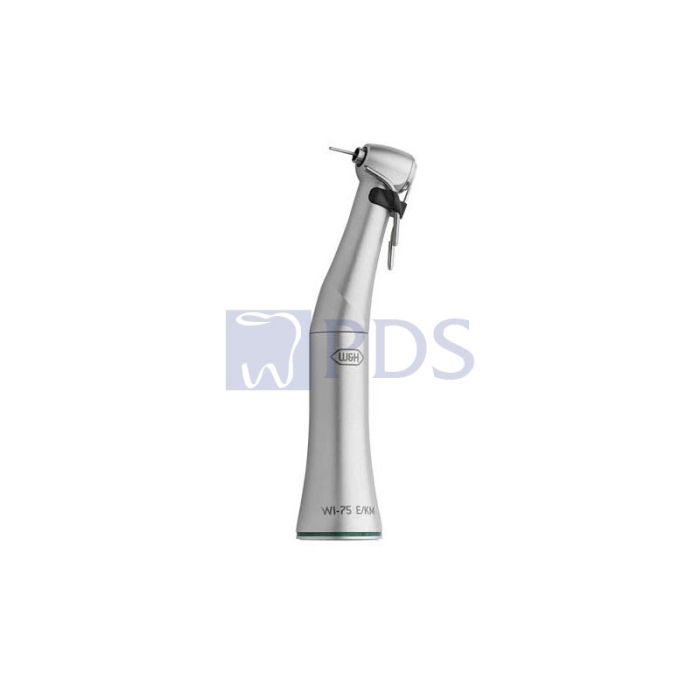

WI-75 E/KM Surgical Contra-Angle Handpiece, 20:1 W&H 10207550

Item Number: 10207550
Packaging: ea
Manufacturer: W&H Group
This item is ineligible for the coupon code. Additional freight charges may apply for the purchase of this equipment and opened handpieces can not be returned. Please call us for a shipping estimate at 800-624-4975.
$1,482.95

Features & Benefits:

  • Surgical Contra-angles are for the highest surgical requirements.
  • Surgical interventions represent a great challenge. To meet this challenge a number of surgical handpieces are required.
  • W&H contra-angle handpieces made from high-quality stainless steel with special coating are particularly robust.
  • Surgical contra-angle handpieces without light is providing the best treatment.
  • The high standards required for the achievement of optimum surgical results are met by the W&H range of surgical contra-angle handpieces, whose design is the result of close attention to detail, high operational safety and stainless steel construction.
  • Fatigue-free working thanks to optimal ergonomics.
  • Thermo washer disinfectable and sterilizable.
  • Fatigue-free working:
    • The ergonomic design is perfectly coordinated to all the application possibilities and prevents fatigue.
  • Variable Cooling:
    • There are spray clips available for the left and right. This means that cooling can be adapted to the individual requirements.
  • WI-75 E/KM Surgical Contra-Angle Handpiece without light Specification:
    • Transmission Ratio: 20:1
    • Coupling System: ISO 3964 (DIN 13940)
    • External Spray: Single
    • Internal Bur Cooling System: Kirschner/Meyer
    • Chucking System: Push-button chuck
    • Rotary instruments: For surgical burs and cutters with contra-angled shank ∅ 2.35 mm.
    • Maximum Drive Speed: 50,000 min-1
    • Can be dismantled: No

Application:

  • For implantation and osteotomy.
Show More
How to disassemble Surgical Contra-Angle Handpieces WS-75 EKM?
W&H Straight and Contra Angle Handpieces Color Coding
W&H LED+ 2D Film

FAQs

  • Should I call the service station before sending equipment for repair?

    If you are not sure what the cause of the problem is, it is better to call the service station and talk to a technician. Together with the technician it can be determined what needs to be sent in and sometimes it is possible to even solve the problem right away.

  • Can current contra-angles be attached to new motors?

    Yes. All W&H surgical contra-angles and handpieces can be attached to the new motor EM-19.

  • Can the new contra-angles be attached to old motors?

    No. In order to deliver the best balance W&H shortened the inner coupling length. Therefore contra-angles with only an L suffix cannot be attached to old motors.

  • Can customers disassemble the new contra-angles?

    Yes. At W&H the letter "S" always communicates, that the surgical contra-angle is disassemble. The letter "I" communicates, that the surgical contra-angle cannot be disassembled (e.g. WS-75 L vs. WI-75)

  • Why doesn't the light on my LED G contra-angle handpiece work when I am positioning an implant?

    The generator in the contra-angle handpiece requires at least 300 rpm to produce enough electricity for the LED. The rotary speed is between 15 and 50 rpm when positioning an implant.

  • Can my W&H handpiece be processed via sterilizer?

    Yes, providing that your W&H handpiece carries the relevant sterilization symbol.

  • Is the removable spray clip of my surgical hand piece sterilizable?

    Yes. In order to extend the live span of the clip, W&H recommends to remove the clip from the hand piece and sterilize it separately (hand piece and clip in one pouch but separated).

  • What is the difference between WI-75 and WS-75?

    Both assure maximum performance. The WS-75 can be dismantled and therefor it can be cleaned more thoroughly.

  • Can LED instruments with generator be sterilized?

    Yes, W&H handpieces with LED and generator are both sterilizable and thermodisinfectable.

  • Which material is used at W&H surgical instruments?

    Internal and external parts are of high quality stainless steel (including the contra-angle handpiece head).
