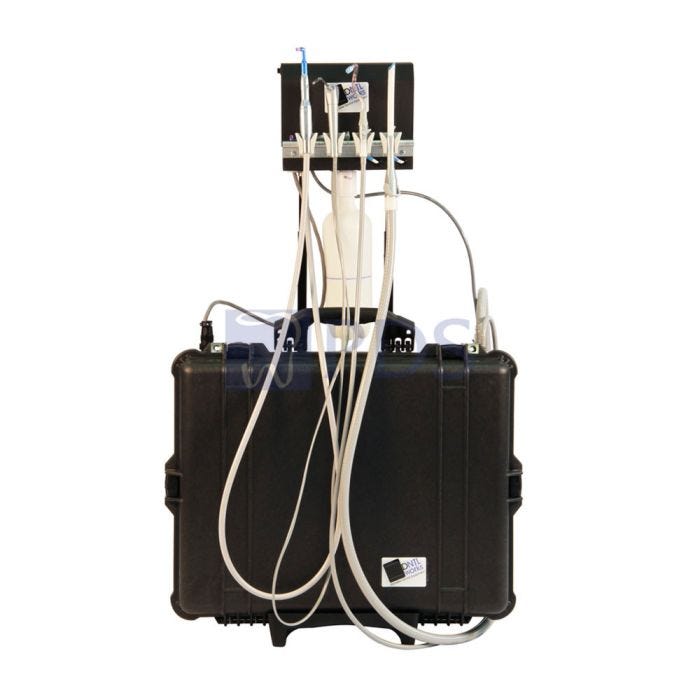

ProQuest II Delivery System with Fiber Optics DNTLworks 1410

Features & Benefits:

• The ProQuest™ II Portable Dental Delivery Systems from DNTLworks Equipment Corporation redefine the standard for powerful performance and self-contained portability.
• Complete electric high speed handpiece with water and speed adjustments.
• Powerful, quiet vacuum pump with dual hoses for HVE and saliva ejector.
• Integrated, non-retracting water source with air/water syringe for irrigating and drying.
• Efficient mini-compressor for air/water syringe use.
• Large waste container with automatic overflow shutoff.
• Compact, one-piece design.
• Electric high speed handpiece with water and speed adjustments.
• Top-mounted control box for all unit functions.
• Non-retracting water source with air/water syringe.
• Impact-resistant case with built-in wheels and retractable handle.
• Powerful vacuum pump with dual hose design accommodates many brands of HVE and saliva ejector tips.
• Handpiece fiber optics are standard in ProQuest II.
• Hospital grade wiring with 15 amp circuit breaker protection.
• Attached, ergonomic carrying handle.
• Easy access through side door.
• Optional light curing unit, and piezo-electric scaler.
• ISO E-type attachment.
• Forward and reverse control.
• Variable speed foot control.
• Internal triple-port water spray.
• ProQuest™ II Portable Restorative Delivery System , 110 V Specification:
• Length: 24.5" (62.2 cm)
• Width: 10.0" (25.4 cm)
• Height: 20.0" (50.8 cm)
• Weight: 60 lbs. (27.3 kg)
• Vacuum Motor Power: 1/3 hp
• Vacuum Strength: 12" Hg
• Vacuum Flow: 4.6 cfm
• Waste Receptacle: 2 qt. (1.9 Liter)
• Sound Level: 46 dB
• Automatic Overflow Shutoff Valve
• Power Supply: 115Volts/60Hz, 220 Volts/50Hz
• Circuit Breaker: 15 amps
• Hospital Grade Wiring: NEMA Type 5-15P Plug
• Handpiece Speed: 0 - 200,000 rpm
• Handpiece Power: 6 amps, 150 watts
• Available Optional Accessories:
• Piezo-electric scaler
• Light curing wand
• Fiber optics for handpiece
• Additional handpiece attachments

Application:

• Redefine the standard for powerful performance and self-contained portability.
