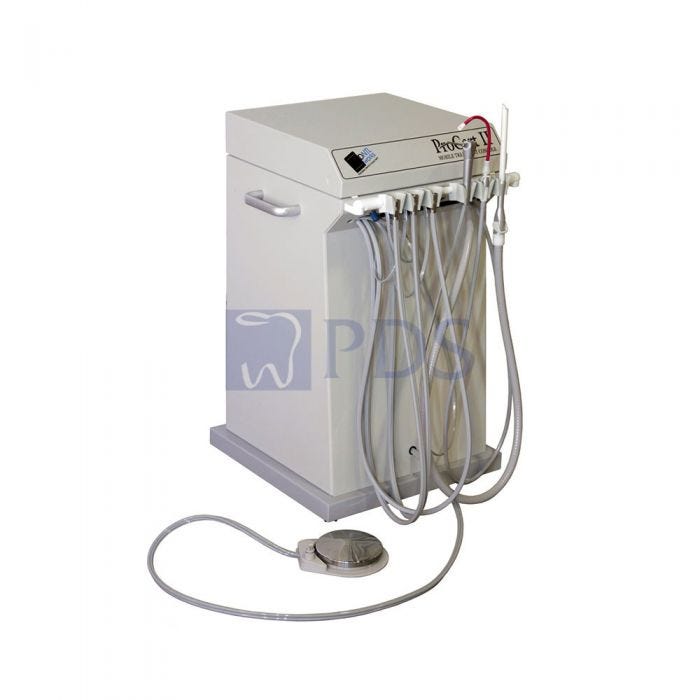

ProCart II Self-Contained Mobile Treatment Console DNTLworks 2200

Features & Benefits:

• The innovative ProCart™ II combines the best attributes of self-contained mobility and a high-tech design.
• Sophisticated, one-piece design: completely self-contained with built-in air compressor, separate vacuum pump, water and waste management.
• High-strength aluminum chassis with innovative WhisperQuiet sound reduction.
• Separate oil-free adjustable vacuum pump for powerful suction.
• Large, four liter waste container with automatic overflow shutoff and electrical waste purge.
• Ample, 1.5 liter water reservoir with additional external water connection.
• Wet/Dry foot control.
• Automatic controls for one, two and three handpieces.
• Accommodates most brands of handpieces and fiber optic systems.
• Three-way syringe.
• Adjustable H.V.E. system.
• Adjustable saliva ejector.
• Asepsis designed chassis and handpiece holders.
• Recessed controls for easy cleaning.
• Air filter moisture separator.
• Repair/Tool kit with operators manual.
• Side maneuvering handles and high-grade casters for easy movement of the cart.
• Optional arm-mounted trays and system cover.
• Automatic overflow shutoff.
• Aseptic filtered exhaust.
• Large volume solids trap.
• Automatic waste removal.
• Aseptic non-retracting HPC coolant.
• Handpiece flush system.
• External quick connects for water and air.
• Automatic air tank purge.
• ProCart II Self-Contained Mobile Treatment Console Specifications:
• Width: 20" (50.8 cm)
• Depth: 21" (53.3 cm)
• Height: 30" to 34" adjustable (76.2 cm 86.4 cm)
• Weight: 100 lbs. (45.5 kg)
• Power Supply: 115 Vac, 60 Hz or 220 Vac, 50 Hz
• Circuit breaker protection: 15 amps
• Hospital grade wiring, NEMA type 5-15 Plug
• Compressor Oil-free 1/3 hp motor
• Compressor Working pressure: 70 to 100 psi
• Compressor Flow rate: 2.5 cfm
• Compressor Sound level: 48 dB
• Compressor Air reservoir: 4 liters
• Adjustable vacuum: 0" to 21" Hg
• Vacuum flow: 4.6 cfm
• Waste receptacle: 4 liters
• Sound level: 48 dB
• Water Module: 1.5 liter reservoir
• Water Pressurized system: 30 to 40 lbs

Application:

• Perfectly suited for professional in-office use.
