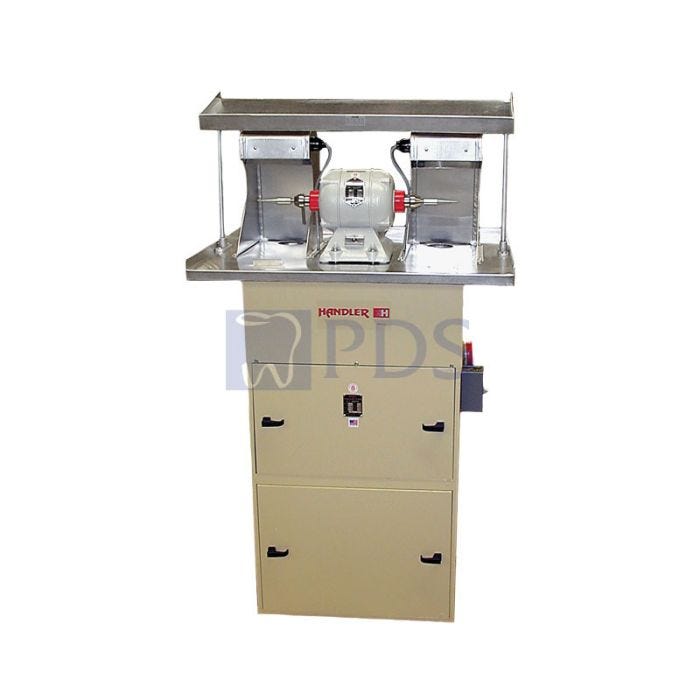

Polishing/Grinding Unit With Cotton Cloth Bags, 56" H x 32" W x 24" D Handler 75D
Item Number: | 75D |
Packaging: | ea |
Manufacturer: | Handler Red Wing International |
Additional freight charges may apply for the purchase of this equipment and returns not accepted. Please call us for a shipping estimate at 800-624-4975.
Features & Benefits:
- The 75D is powered by a 3/4 HP 3450 RPM suction motor which produces 600 CFM (cubic feet/minute) [283m3/min.] suction capacity.
- This unit contains 24 shakeable cloth filter bags containing 62 sq. feet of filtering area.
- A No. 26 High Base, two speed, 1/4 HP polishing motor is mounted on the 32" wide x 24" deep [81cm x 61cm] tabletop.
- The Unit effectively entraps particles as small as 0.5 microns and larger particles.
- Dusts and grindings are shaken from cloth filter bags with the aid of foot shaker located on lower right side of cabinet.
- The 75D is a must for all laboratories. Finished in a durable, modern baked coating.
- Suction Motor - 3/4 HP, 115 Volts/60Hz.
- Polishing Motor - No. 26 Red Wing, two speed lathe
- Suction Capacity - 600 CFM (cubic feet/minute) [283m3/min.]
- Filter Area - 62 sq. Ft., 24 shakeable Cloth Filter Bags.
- Cleaning - External foot shaker, internal cabinet dust tray.
- Shipping Wgt.: 365 pounds.
- Unit dimensions: 56" high x 32" wide x 24" deep. Work surface 40" to table top [142cm x 81cm x 61cm]
Application:
- A professionally designed grinding and polishing unit built specifically for dry grinding operations such as grooving plaster models, dry polishing and dry model trimming.
