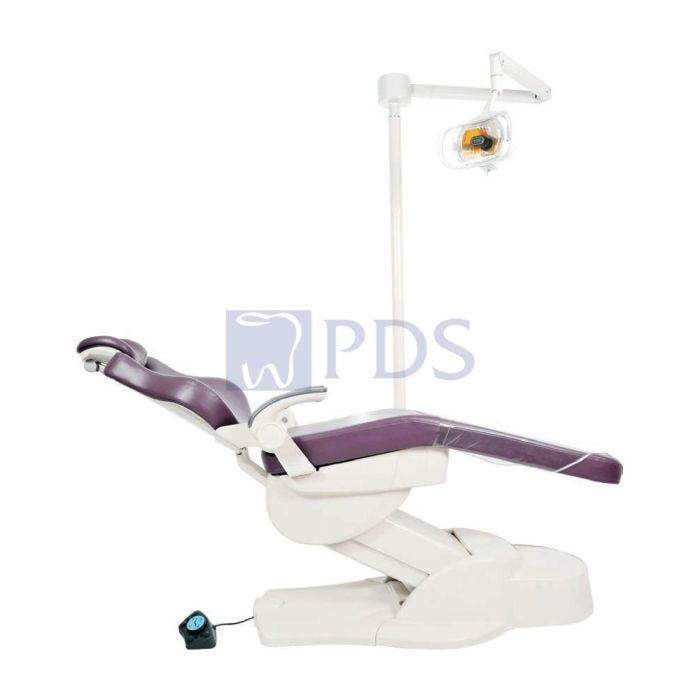

Mirage Hydraulic Orthodontic Chair, Include Standard PC-1000 Chair Upholstery TPC 3000

Item Number: 3000-1
Manufacturer: TPC
$5,211.09

Features & Benefits:

  • TPC Mirage Orthodontic Hydraulic Patient Chair Packages include the following:
    • Two programmable positions.
    • One preset exit position.
    • Electronic foot control with auto return function.
    • Built-in fuse / surge protection.
    • Toe guard protection to prevent scuffing.
    • All-metal construction.
    • Safety shut-off base plate.
    • Double articulating headrest, adjustable for height and wheelchair positioning.
    • Locking swivel, 60 degree.
    • Seamless Upholstery.
    • Coordinated leg rest tilt.
    • Input voltage 110V or 220V.
  • Foot Control Hands-free positioning of the patient. 2-programmable positions plus an entry/exit position and last position.
  • Cast aluminum base for high durability.
  • Articulating dual axis headrest rotation allows for optimum positioning of the oral cavity without the need to reposition the chair.
  • Optional armrests swing-out for patient entry and exit from the chair.
  • Locking lever allows user to lock chair into desired position.
  • Seat rotates 30° to left and right of center to accommodate different working styles and to maximize access to intraoral x-ray system.
  • Safety shut-off plate disables seat down/backrest recline functions to prevent injury to the operator or damage to items beneath the plate.
  • Optional: TP-2005 Touchpad control installed on dental chair.
  • Synchronous backrest.
  • Articulating dual axis headrest.
  • Cast aluminum base.
  • Programmable foot control.
  • Short pump cover.

Specification:

  • Lifting/lowering mechanism : Hydraulic, cantilever type.
  • Initial height/stroke : 15.5" / 15".
  • Backrest Reclining angle : 0° (Horizontal) - 70°.
  • Seat tilting : 10° - 20°, Synchronized with backrest.
  • Preset position : Microcomputer control. Three preset position, auto return, last position.
  • Chair rotation angle : 30° left / 30° right of centreline.
  • Headrest : Dual axis type.
  • Safety shut-off plate : Under the main link.
  • Emergency stop : Any switch can cancel chair movement.
  • Warranty 5 Year Limited.
  • Packing Dimensions: Chair: 54 x 34 x 31 / 300 lbs, Cushion: 51 x 24 x 10 / 27 lbs.

Application:

  • Dental Office Use.
