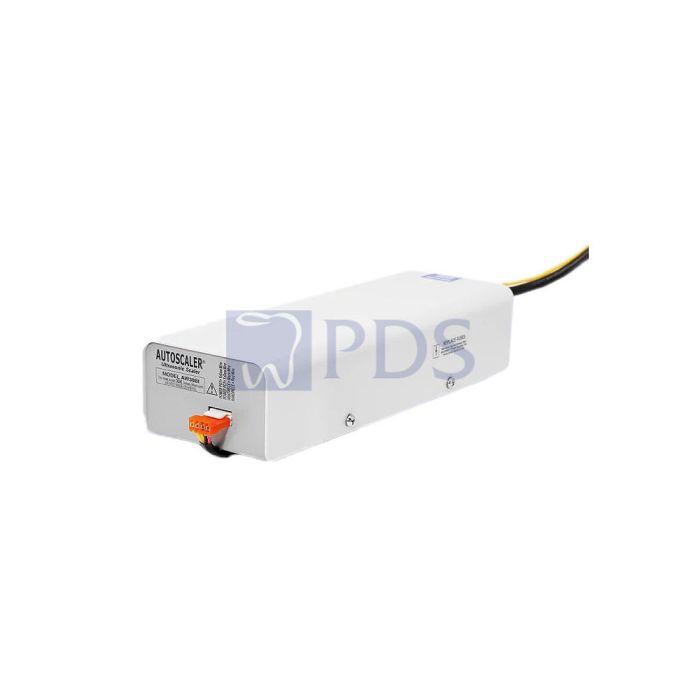

Autoscaler 25K Build In Model - Ultrasonic Scaler 120 VA South East Instruments AW25BI

Features & Benefits:

• The Autoscaler has been manufacturing and servicing the highest quality ultrasonic scaler for over 40 years.
• All of Autoscaler products are manufactured in the USA using only the best parts.
• 25K type models available.
• Detachable handpiece assembly that attaches to the front left side of the console.
• Precision automatic tuning.
• Water pressure flow regulation to ensure precise delivery of water during procedures Designed to accept and function efficiently with leading Manufacturers magnetostrictive insert tips.
• Available in retrofit build-in style model that is incorporated into the dental chair and operates from the chair main rheostat.
• Also Available in a RETROFIT BUILD IN model.
• High performance ratings by a leading research institute.
• Do 25K and 30K Perform the same? There is no published study proving one format outperforms the other. There is no need to switch between 25k and 30k frequency.
• Designed to accept and function efficiently with the corresponding frequency Dentsply/Cavitron brand inserts.
• Precision Automatic Tuning Circuit designed to lock-in and activate Dentsly/Cavitron inserts in an elliptical pattern which provides feather touch removal of stain and calculus under all load conditions.
• Accepts Cavitron inserts "P" "SLI" "TFI" "FSI".
• An optional built in AIR MICROSWITCH ACTIVATOR allows the AUTOSCALER to be interfaced into the operatory air system, bypassing the need for a manual foot switch.
• Linear Power Control used by Periodontists for special applications and routine scaling. The Operator can choose the exact power level needed.
• Includes a Detachable handpiece for ease of assembly and cleaning.
• Six year circuit board warranty. The longest warranty in the industry. Full parts and labor warranty for 6 years on circuit boards, and 2 years on all other components. See warranty for exact details.
• Each Autoscaler is made in the United States of America using over 80% American made components.
• Specifications:
  • SIZE: Height: 2.2" Width: 8.6" Depth: 7.9". (inches).
  • Weight: 7 pounds.
  • Output power to tip: Operator adjustable from approximately 30 to 55 watts.
  • Power Supply to Unit: 110/125 VAC 50/60Hz.
  • Current:
    • 0.8 amperes, 110/120 VAC Fuse 3AG (2.0 ampere) regular blow style.
    • 0.4 amperes, 220/230 VAC Fuse 3AG (2.0 ampere) regular blow style.
  • Frequency Generated: 25,000 khz CPS and 30,000 khz CPS (Two Models).
  • Accepts corresponding frequency Dentsply/Cavitron TFI, SLI, FSI and P series insert tips.
  • Air Microswitch Activator: (Optional) Needs a minimum input pressure of 20 PSIG, and maximum of 60 PSIG to properly function.
  • Water Flow and Pressure Supply: 18cc and 30cc per minute flow from insert tip.Operator adjustable precision pressure regulation. Supply pressure to scaler is 25 to 60 PSIG city water input or (Contained bottle System).
  • Supplied with: 8.0' detachable handpiece assembly, 8.0' manual foot switch (not supplied when ordered with Air microswitch option), 8.0' water tubing with 1/4th male quick connector attached, instructions.

Application:

• For Routine, special periodontal procedures, scaling, cleaning supra and subgingival surfaces.
