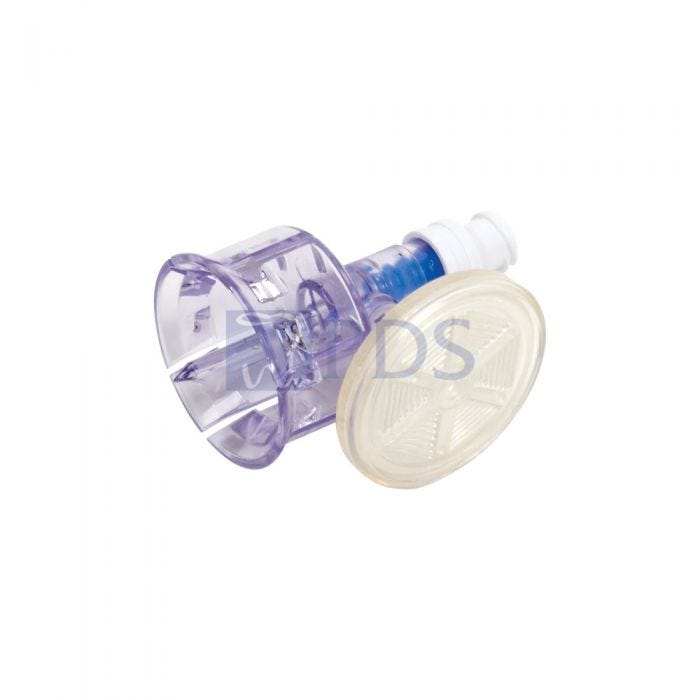

BD Carefusion Infusion Disposables Vial Access Device, Vented, 0.2 Micron, SmartSite® Needle-Free Valve, 40/cs 10012392

Item Number: 10012392
Packaging: cs
Manufacturer: Becton-Dickinson
Special Order Item. 14-21 Days Delivery. Item can not be returned. Continental US Only.

Features & Benefits:

  • This device partners with the Texium™ closed male Luer to provide closed-system access to drug vials.
  • SmartSite™ needle-free valve includes:
    • Needle-free access to multiple-use vials.
  • 0.2 micron hydrophobic air-venting filter provides:
    • Neutralization of vial pressure, minimizing aerosols and surface contamination.
    • Eases drug extraction.
  • Dual pathway spike efficiently:
    • Transfers fluids for maximum extractable volume.
  • Gain compatibility while reducing risk:
    • With the universal vented vial adapter, hospital personnel do not need to sacrifice safety for simplicity.
  • 0.2 micron hydrophobic filter - Neutralizes vial pressure to minimize aerosols and surface contamination, and eases drug extraction.
  • Dual pathway spike - Helps efficiently transfer fluids and maximize the extractable fluid volume from the vial.
  • Needle-free connector - Supports all vial sizes and types.
  • Instructions for use:
  • Swab the vial with 70%isopropyl alcohol (IPA), and allow it to dry.
  • Remove the protective sheath from the spike.
  • Hold the body of the needle-free valve and insert the vial access device into the center of the vial ensuring the vial is on a flat, solid surface.
  • Ensure the adapter and spike are entering vertically and not tilted or at an angle.
  • Push firmly using a twisting motion until the spike enters the vial. To fully seat the adapter to the top of the vial, push downward while rotating adapter a full 720 degrees.
  • Swab the top of the needle-free valve with 70%IPA and allow it to dry.
  • Connect the syringe to the needle-free valve on a hard and flat surface.
  • Inject the desired amount of diluents into the vial, keeping both the vial and spike upright and in the center of the septum.
  • Invert the vial and withdraw the desired amount of solution.
  • Disconnect the syringe by holding onto the SmartSite portion of the vial adapter with one hand and, with the other, hold the Texium syringe or other compatible closed male luer.
  • Important tips:
  • Do not inject fluid while the vial is inverted.
  • If the filter "wets out," aspirate it using an empty syringe to create negative pressure.
  • Do not insert the spike at an angle or in a tilted fashion.
  • Do not hold the vent while inserting the spike into the vial.
  • Do not use the vial access device to access more than one vial.
  • Always swab the needle-free valve prior to accessing it.
  • Replace the device every 96 hours or after 20 uses, whichever occurs first.


  • The CareFusion universal vented vial adapter provides closed, needle-free access to multiple-use drug vials to help reduce the risk of surface contamination during the drug reconstitution process."
